CHAPTER 4 DRILLING OPERATIONS: AN OVERVIEW
Jurisdiction | United States |
(2001)
DRILLING OPERATIONS: AN OVERVIEW
Petroleum Engineering Department Colorado School of Mines
Golden, Colorado
[Page 4-1]

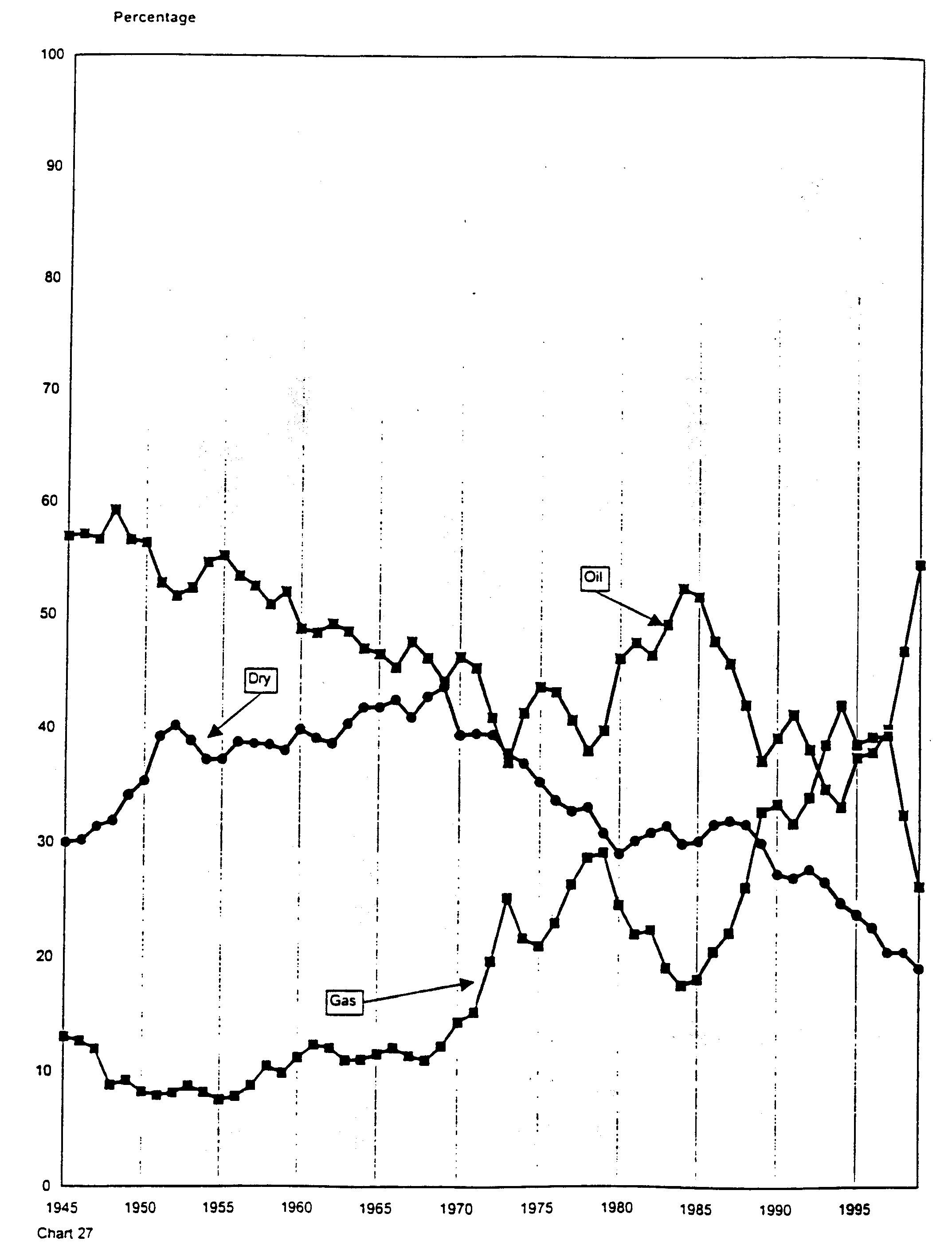

WELLS DRILLED IN THE UNITED STATES
From DeGolyer and MacNaughton, December 2000
[Page 4-2]

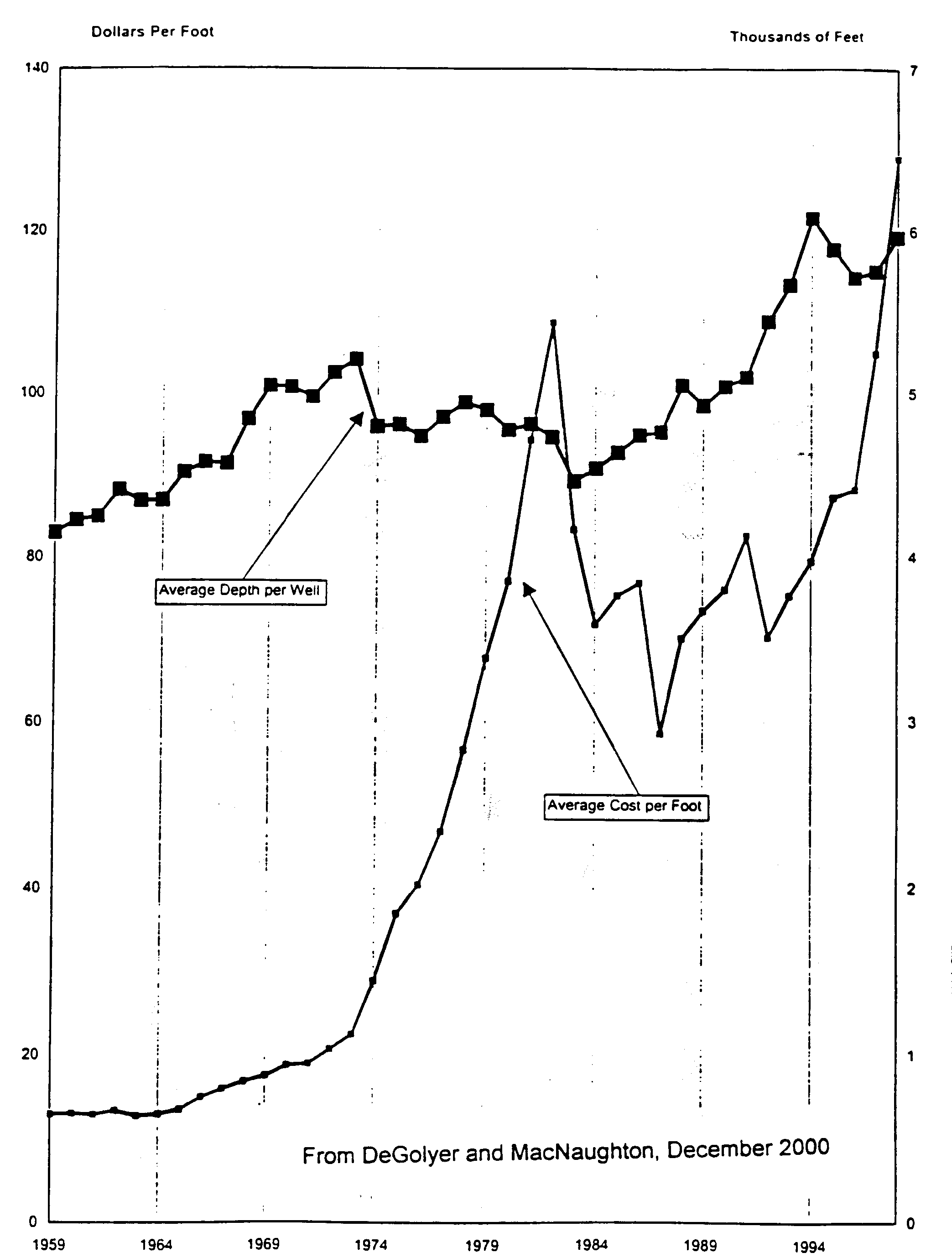

ESTIMATED COST OF DRILLING AND EQUIPPING OIL WELLS IN THE UNITED STATES
[Page 4-3]
ESTIMATED COST OF DRILLING AND EQUIPPING TOTAL WELLS IN THE UNITED STATES
[Page 4-4]

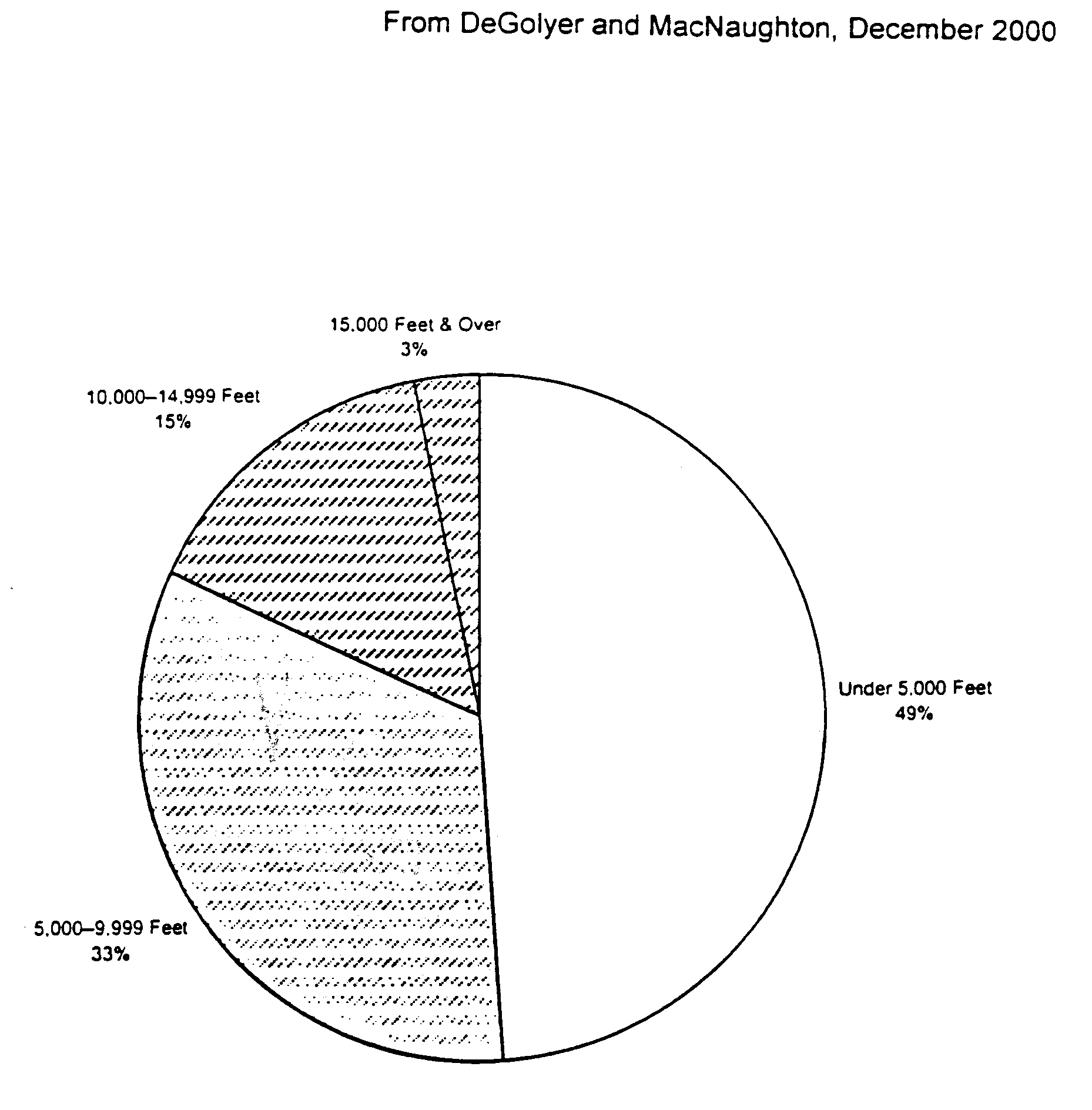

DEPTH INTERVAL OF WELLS DRILLED IN THE UNITED STATES IN 1999 (Percentage)
[Page 4-5]
How to Drill a Well — Part 1
• Determine location | • Move in rig up (MIRU) drilling rig |
— Geology | — Rigs are portable |
— Legal | — Assembly |
— Economic | • Drilling |
• Prepare site | — Keep a sharp bit on bottom |
— Survey | — Add joints every 30 feet |
— Clear | — Tripping |
— Level | — Use mud |
— Water source | • Liquid |
— Reserve pit | — Oil |
— Roads | — Water |
— Reclamation | • Pneumatic |
— Dig cellar | — Air |
— Dig rat hole and mouse hole | — Natural gas |
— Set conductor pipe | — Nitrogen |
• Drill surface hole |
[Page 4-6]
How to Drill a Well — Part 2
• Run surface pipe | • Trouble |
— Protect fresh water | — Kicks and blow-outs |
— Anchor BOPE | — Lost circulation |
• Cement surface pipe | — Stuck pipe |
— WOC | — Fishing |
— Nipple up BOPE | — Mechanical breakdown |
• Drill out of surface pipe | — Lost hole |
— Leak off test | • Run intermediate casing |
• Drill ahead (turn to the right) | — Protects hole |
• Evaluation while drilling | • Sloughing |
— Mud logging | • High pressure |
— Coring | • Low pressure |
— MWD | • Salt |
Drill stem tests (DST) | • Cement intermedia |
• Drill out of interme?? |
[Page 4-7]
How to Drill a Well — Part 3
• Drill ahead | • If a keeper |
• Reach total depth (TD) | — Run production casing |
• Evaluate | — A liner is casing that doesn't reach |
— Logging | the surface. |
• Electrical | — Cement |
• Acoustical | • If a dry hole |
• Radioactive | — Plug and abandon as per regulatory |
— DST | requirement and prudent operators |
• Three things can happen | procedures |
— Production is found | • Rig down move out (RDMO) |
— Dry hole | drilling rig |
— Learned science |
[Page 4-8]

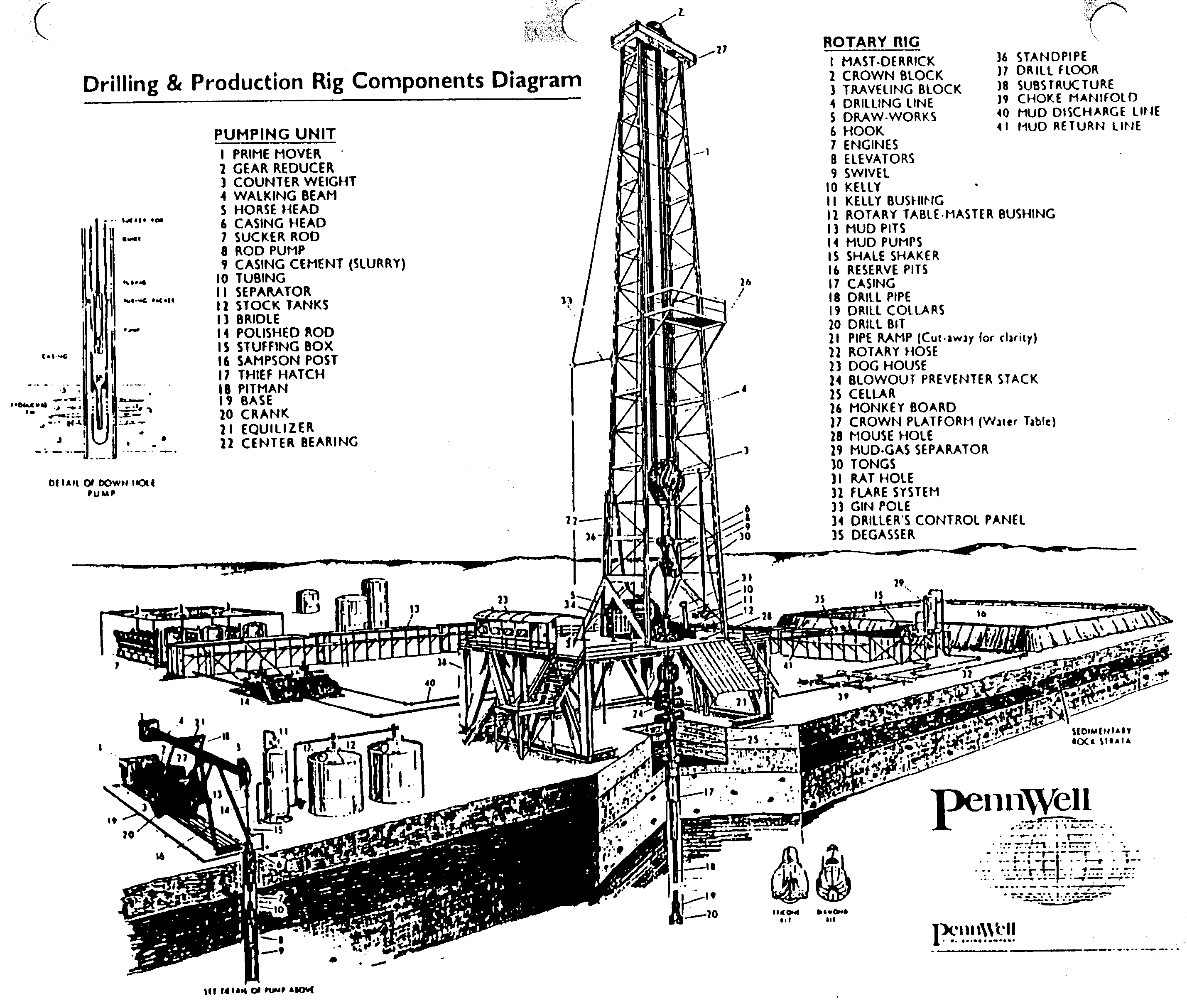

Rig Equipment
• Power | • Rotary Table |
— Motors | • Drill String |
— Compound | — Swivel and Kelly |
• Hoisting | — Drill Pipe |
— Drawworks | — Bottom Hole Assembly |
— Blocks and Tackle | — Bit |
— Mast | • Well Control |
— Substructure | — Blow-out Prevention Equipment |
• Circulation System | • Ancillary |
— Mud Pumps | — Instruments and Doghouse |
— Capacity | |
— Solids Control System |
[Page 4-9]
[Page 4-10]
Power — Motors
• Power
— Hoisting — Drawworks
— Fluid Circulation — Mud Pumps
— Rotary Table
— Other
• Miscellaneous pumps
• Lights
• Television sets
• Coffee pots
• Types
— Diesel — electric
— Diesel — direct drive
— Steam
[Page 4-11]
Circulation System — Solids Control System
• Solids can be...
